Concealed hinge TIOMOS click-on 95

Concealed hinge Tiomos 95 Click-on
HNGE-TS-CLICKON-95-H-BP-C03
GRASS

Art.-no. F028138750
EAN 4052712391507
All versions

Prices for customers after login

Show availability in Würth trade store
Exclusively for trade customers

Register now and access more than 125,000 products

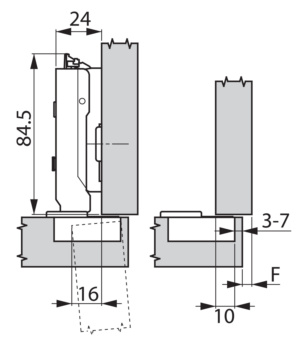

Accommodates door thicknesses of up to 36 mm
  • Pot for screwing on

  • Seamless joints on doors up to 28 mm thick

  • Easy-to-adjust depth using worm screw

  • 3D adjustment with compatible mounting plate


Available in three designs


  • With integrated damping (three damping settings available)

  • Without integrated damping

  • No self-closing function (not spring-loaded)
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Click here for the complete CAD library

Door position

Overlay

Cranking

3 mm

Damper

Yes

Spring

Yes

Type of assembly

Screw-on

Hole drilling

52/5.5 mm

Surface

Nickel plated

Material

0 - not applicable

Material of cup

Steel

Material of hinge arm

Steel

Opening angle

95 Degree

Required accessory:

Product
Description
Quantity
PU
Price
/PU
Cross mounting plate TIOMOS 1D with four-point attachment for a secure connection to the side of the furniture
Cross mounting plate TIOMOS 1D with four-point attachment for a secure connection to the side of the furniture

AY-CRSMNTPLT-TIOMOS-1D-H00
