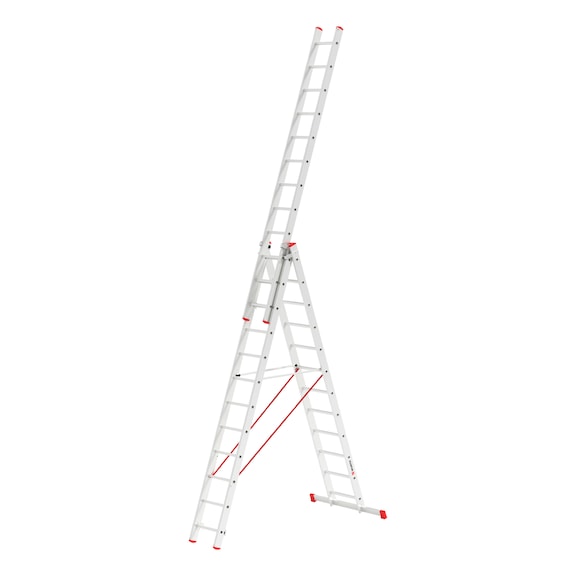

Aluminium combination ladder with rungs

Material

Aluminium

Number of rungs

3 x 12

Width

0.50 m

Traverse length

1.20 m

Traverse dimensions

70 x 25 mm

Beam dimensions

100 mm x 25 mm

Rung distance

280 mm

Rung dimensions

30 x 30 mm

Stand area according to TRBS 2121-2

No

Load capacity

150 kg

Min./max. length as standard ladder

3.47-8.51 m

Max. standing height as standard ladder

7.04 m

Max. working height as standard ladder

8.54 m

Max. reaching height as standard ladder

9.04 m

Dock height as leaning ladder (at 70° tilting)

8.00 m

Step ladder with sliding part: Min./Max. length

3.47-5.99 m

Step ladder with sliding part: Max. standing height

4.41 m

Stepladder with sliding part: Max. working height

5.91 m

Step ladder with sliding part: Max. reaching height

6.41 m

Step ladder with sliding part: Stride length

2.47 m

Step ladder with sliding part Min./max. height vertical

3.27-5.63 m

Step ladder without sliding part: Length

3.47 m

Step ladder without sliding part: Standing height

2.30 m

stepladder without sliding part: Working height

3.80 m

step ladder without sliding part: Reaching height

4.30 m

Step ladder without sliding part: Stride length

2.47 m

Step ladder without sliding part: Height vertical

3.26 m

Transport dimension

3.48 x 051 x 0.27 m

Weight

29.8 kg

Standards

EN 131
